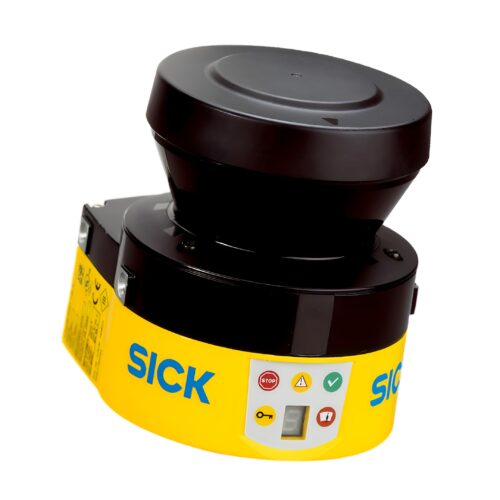

SICK MICS3-CBAZ55ZA1P01 Safety Laser Scanner (1091038)

The SICK MICS3-CBAZ55ZA1P01 is a microScan3 Pro – EFI-pro safety laser scanner, delivering networked safety communication via SICK’s EFI-pro protocol for ultra-fast, secure system integration.

With a 5.5-meter protective field, 275° scan coverage, and support for up to 128 fields and monitoring cases, it’s built for advanced industrial safety networks, robotics, and AGV fleets.

Note: System plug is pre-mounted on the underside but can be relocated to the rear if required.

Technical Specifications

• Model: MICS3-CBAZ55ZA1P01 SICK
• Part Number: 1091038
• Product Type: Safety Laser Scanner
• Series: microScan3 Pro – EFI-pro
• Application: Indoor use
• Protective Field Range: 5.5 m
• Warning Field Range: 40 m
• Scanning Angle: 275°
• Resolution (Configurable): 30 mm, 40 mm, 50 mm, 70 mm, 150 mm, 200 mm
• Angular Resolution: 0.39°

Functional Parameters

• Number of Simultaneously Monitored Fields: ≤ 8
• Number of Fields: 128
• Number of Monitoring Cases: 128
• Response Time: 95 ms
• Protective Field Supplement: 65 mm

Safety-Related Data

• Protection Class: III (EN 61140)
• Certifications:
  • European Conformity (CE)
  • UK Conformity Assessed (UKCA)
  • cULus
  • Regulatory Compliance Mark (RCM)
  • S-Mark (Japan)

Electrical Interface

• Supply Voltage: 24 V DC (16.8 V to 30 V DC)
• Power Consumption:
  • Typical: 7.2 W

Mechanical Data

• Dimensions (W x H x D): 112 mm x 150.7 mm x 111.1 mm (without system plug)
• Weight: 1.45 kg
• Housing Material: Aluminum
• Housing Color: RAL 1021 (Yellow), RAL 9005 (Black)
• Optics Cover Material: Polycarbonate
• Optics Cover Finish: Scratch-resistant coating (outer surface)

Ambient Conditions

• Operating Environment: Indoor
  (Refer to full datasheet for detailed environmental tolerances.)

Scope of Delivery

• Included:
  • Safety scanner unit with system plug (pre-mounted underneath)
• Not Included:
  • Cabling, mounting kits, or configuration accessories

Applications

Ideal For:

• Flexible robot workcells and collaborative robotic applications
• Smart AGV navigation and safety zoning via EFI-pro networks
• Complex, dynamic safety fields in modular production lines
• Factory automation needing ultra-reliable networked protection

Key Features & Benefits:

✅ EFI-pro Safety Communication: Secure, high-speed networking with SICK EFI-pro controllers and devices.

✅ Massive Zoning Capacity: 128 programmable fields and 128 monitoring cases.

✅ Superior Detection Range: 5.5 m protective field and 275° view for wide coverage.

✅ Industrial-Strength Design: Aluminum housing with scratch-resistant polycarbonate optics.

✅ Fast, Reliable Response: 95 ms system reaction time for responsive safety guarding.
