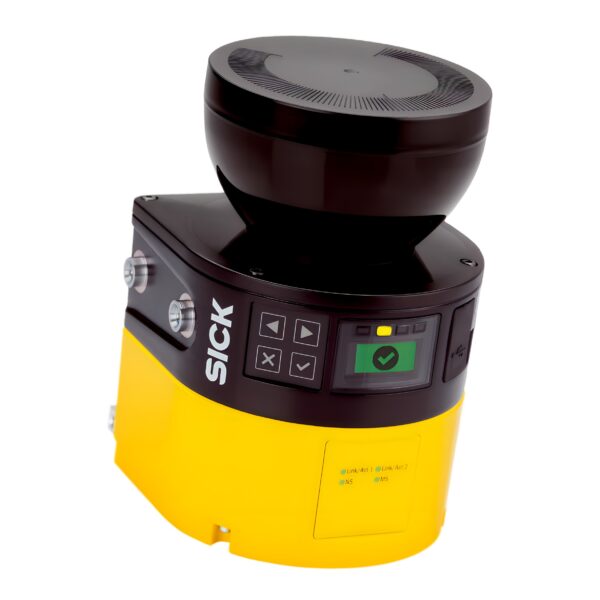

SICK MICS3-CCAZ40AN1P01 MicroScan3 Pro I/O Safety Laser Scanner (1133818)

The SICK MICS3-CCAZ40AN1P01 is a robust, high-precision Type 3 safety laser scanner from the microScan3 Pro I/O family. With an extended 4 m protective field, wide 275° scanning angle, and 128 programmable fields, this scanner ensures reliable area protection in indoor industrial environments. It comes pre-assembled with a system plug mounted on the underside, which can optionally be repositioned to the rear side for installation flexibility.

Technical Specifications

Model: MICS3-CCAZ40AN1P01
Part No.: 1133818
Product Type: Safety Laser Scanner
Series: microScan3 Pro I/O
Application: Indoor environments
Pre-Mounted System Plug: Underside (repositionable to rear side)

Detection & Monitoring

Protective Field Range: Up to 4 m
Warning Field Range: Up to 40 m
Distance Measuring Range: 40 m
Scanning Angle: 275°
Configurable Resolution: 30 mm, 40 mm, 50 mm, 70 mm, 150 mm, 200 mm
Angular Resolution: 0.39°
Response Time: 70 ms
Protective Field Supplement: 65 mm

Field Monitoring:

• Max. Simultaneously Monitored Fields: ≤ 8
• Total Number of Fields: 128
• Monitoring Cases: 128

Safety-Related Parameters

Type: Type 3 (IEC 61496)
SIL: SIL 2 (IEC 61508)
Category: Cat. 3 (EN ISO 13849)
Performance Level: PL d (EN ISO 13849)
PFHD: 8.0 × 10⁻⁸
Mission Time (TM): 20 years
Safe State (Fault): At least one OSSD OFF

Electrical Data

Protection Class: III (EN 61140)
Supply Voltage (Vs): 24 V DC (16.8 V … 30 V)
Power Consumption (Typical): 6 W (no output load)

Mechanical Data

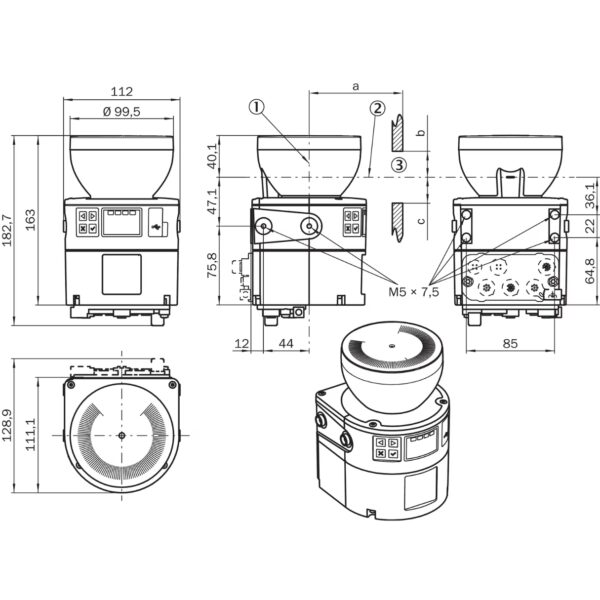

Dimensions (W × H × D): 112 mm × 163 mm × 111.1 mm
Weight: 1.6 kg
Housing Material: Aluminum
Housing Colour: RAL 1021 (yellow) / RAL 9005 (black)
Optics Cover Material: Polycarbonate
Optics Cover Surface: Scratch-resistant coating

Environmental & Certifications

• IP Rating: IP65/IP67 (depending on system plug)
• CE (EU Compliance)
• UKCA (UK Conformity Assessed)
• RCM (Australia/New Zealand)
• cULus Listed
• GB Certification (China)

Applications

Ideal For:

• Stationary industrial machinery protection
• Robot cell perimeter monitoring
• Safe presence detection in automated work areas
• Indoor AGVs and mobile platforms requiring wide field scanning
• Safety zoning in high-traffic environments

Key Features & Benefits

✅ Extended Protective Range: 4 m safety zone and 40 m warning field for flexible layouts.

✅ Wide 275° Scanning: Covers large areas with fewer devices.

✅ Advanced Configuration: Supports 128 fields and 128 monitoring cases with flexible resolution.

✅ Industrial Durability: Aluminum body with scratch-resistant optics and IP-rated protection.

✅ Plug-and-Play Ready: Pre-mounted system plug simplifies installation; rear-side option available.
