SICK RAY26P-34162A30A00 Reflex Array Photoelectric Sensor (1113471)

The SICK RAY26P-34162A30A00 is a high-performance reflex array photoelectric sensor designed for detecting a wide range of object types — including transparent, shiny, uneven, or position-tolerant items.

Featuring coaxial optics, visible red PinPoint LED, and a configurable 55 mm detection height, this sensor excels in applications where conventional sensors struggle.

Its compact rectangular housing, lightning-fast 500 µs response time, and intelligent AutoAdapt functionality make it ideal for packaging lines, logistics automation, and material handling with varying object profiles.

Technical Specifications

Model: RAY26P-34162A30A00
Part Number: 1113471
Product Type: Photoelectric Reflex Array Sensor
Sensing Range: 0 m to 4.5 m
Minimum Object Size: Configurable (10 mm to 30 mm)
Detection Height: 55 mm
Sensing Principle: Reflex Array with coaxial optics
Type of Light: Visible red light
Wavelength: 635 nm
Light Source: PinPoint LED
Light Spot Size (at 1 m): 55 mm × 9 mm
Adjustment Method: BluePilot (Teach-in, IO-Link)
Special Functions: AutoAdapt, Configurable output logic
Special Applications: Detects flat, perforated, shiny, uneven, and transparent objects

Mechanical & Electrical Data

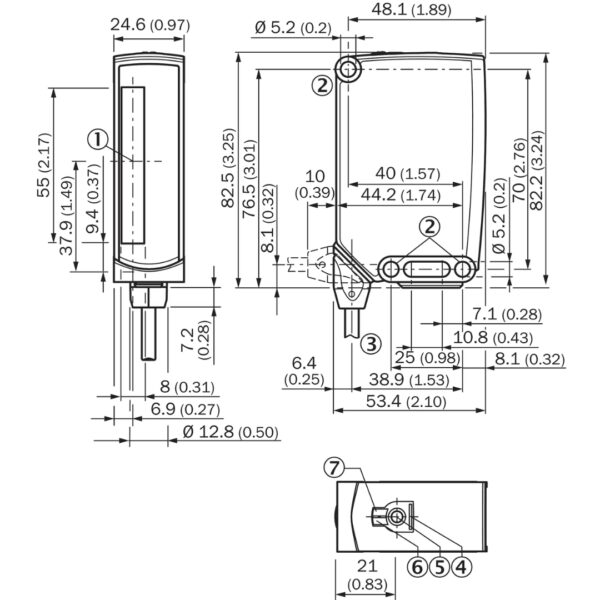

Dimensions (W × H × D): 24.6 mm × 82.5 mm × 53.3 mm
Housing Design: Rectangular
Output Type: Push-pull (PNP/NPN)
Switching Mode: Light/dark switching (IO-Link configurable)
Output Current (Max.): ≤ 100 mA
Response Time: ≤ 500 µs
Switching Frequency: 1,000 Hz
Supply Voltage (UB): 10 V DC to 30 V DC
Ripple: < 5 Vpp
Current Consumption: 25 mA (typical), 40 mA (max)
Connection Type: 270 mm cable with M12 male connector, 4-pin
Circuit Protection: A, B, C, D
Protection Class: III
Enclosure Rating: IP66, IP67
Housing Material: Plastic, VISTAL®
Optics Material: Plastic, PMMA
Weight: 100 g

Environmental Data

Operating Temperature: –40 °C to +60 °C
Storage Temperature: –40 °C to +75 °C
UL File Number: NRKH.E181493 & NRKH7.E181493

Applications

Ideal For:

• Detection of objects with positional variance
• Transparent and shiny material detection
• Flat or perforated product sensing
• Warehouse, packaging, and material handling systems

Key Features & Benefits

✅ Reflex Array Design: Detects even complex surfaces with accuracy.

✅ AutoAdapt Technology: Adapts to changing object properties in real-time.

✅ Fast Response: Sub-millisecond detection for high-speed applications.

✅ IO-Link Integration: Seamless connectivity and configuration.

✅ Wide Detection Profile: Adjustable for various object sizes and shapes.

📦 Available Now from Drive Outlet Megastore

At Drive Outlet Megastore we offer competitive SICK RAY26P-34162A30A00 prices, ready for fast shipping.

Need help selecting a reflector or wiring configuration? Talk to our sensor specialists today.

Precision detection — engineered by SICK, delivered by Drive Outlet Megastore.
