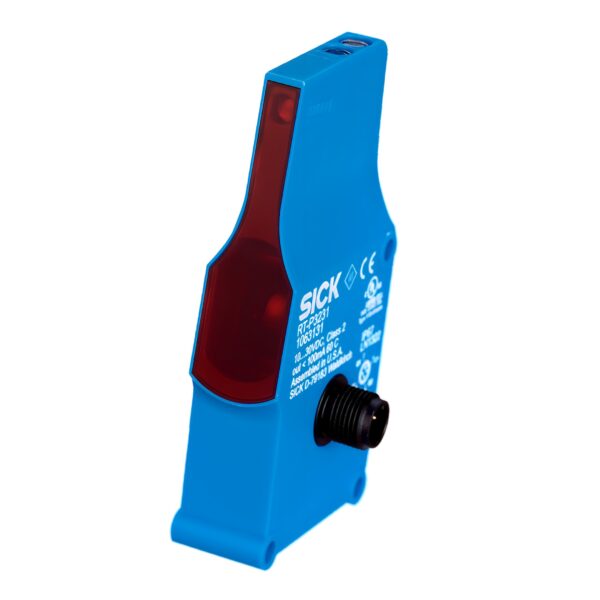

SICK RT-P3231 Photoelectric Proximity Sensor (1063131)

Name: SICK RT-P3231 Photoelectric Proximity Sensor (1063131)
SKU: RTP3231
Price: 183.94 GBP
Availability: InStock

£183.94 inc VAT

In Stock · Delivered in 3–5 Working Days

Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.

Technical SpecificationsSICK

Model	RT P3231
Product Type	Photoelectric proximity sensor
Sensing Range	60 mm to 900 mm
Supply Voltage	10 V DC to 30 V DC
SICK Part Number	SICK 1063131
Output Current Max.	≤ 100 mA
Light Type	Infrared
Switching Output Type	PNP
Connection Type	M12 connector, 4-pin
Switching Frequency	250 Hz

✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It InstantlySend us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

SKU: RTP3231 Category: Photoelectric Sensors Tags: 1063131, RTP3231 Brand: SICK

Guaranteed Safe Checkout

Extra Features

100% Brand New & Genuine OEM Product
Includes Full 2-Year Warranty for Peace of Mind
Fast UK & Worldwide Shipping – Fully Tracked
Expert Technical Support from Our In-House Engineers
Found a Better Price? We’ll Match or Beat It Instantly

SICK RT-P3231 Photoelectric Proximity Sensor (1063131)

The SICK RT-P3231 is a ZoneControl photoelectric proximity sensor designed for conveyor systems and industrial material handling. With infrared background suppression and a long sensing range up to 900 mm, this sensor ensures reliable object detection even in dynamic or dusty environments.

Technical Specifications

Model	RT P3231
SICK Part Number	SICK 1063131
Product Type	Photoelectric proximity sensor
Application	Conveyor-based detection and ZoneControl logistics systems
Sensing Range	60 mm to 900 mm
Adjustment	9-turn potentiometer
Focus Angle	7° (narrow beam)
Light Type	Infrared
Light Source	LED
Light Spot Size	Ø 20 mm at 500 mm
Housing Style	Rectangular industrial enclosure
Functional Principle	Background suppression

Electrical Interface

Supply Voltage	10 V DC to 30 V DC
Ripple	< 5 Vpp
Current Consumption	20 mA (typical)
Switching Output Type	PNP
Switching Mode	Light/dark switching
Output Current Max.	≤ 100 mA
Response Time	2 ms
Switching Frequency	250 Hz
Signal Voltage PNP HIGH/LOW	Approx. VS – 0.5 V / 0 V
Connection Type	M12 connector, 4-pin
Protection Class	III
Circuit Protection	A: Short-circuit protected C: Reverse polarity protected D: Power-up pulse suppression Protection Class: III

Mechanical Data

Enclosure Rating	IP67
Housing Material	Plastic (ABS)

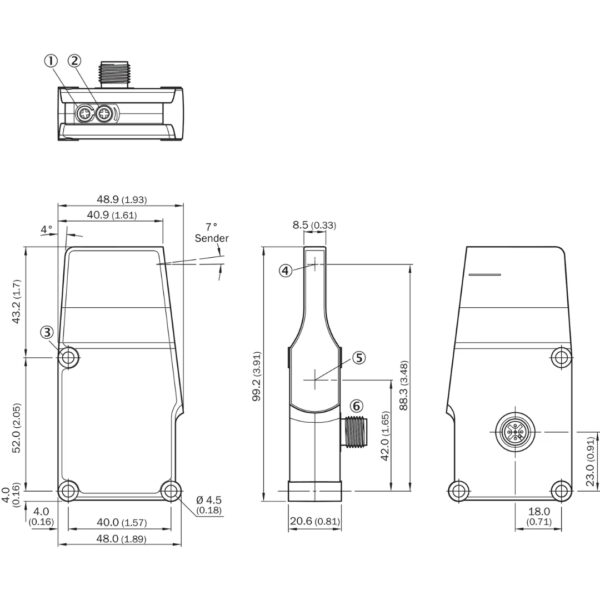

Dimensions (W x H x D)	20.6 mm x 99.2 mm x 48.9 mm
Weight	175 g
Shock/Vibration Resistance	According to IEC 68
Mounting	Not specified (standard industrial bracket compatibility)

Safety-Related Data

MTTFD (Mean Time to Dangerous Failure)	Not specified
DCavg	Not specified
Mission Time (TM)	Not specified

Ambient Conditions

Operating Temperature	–40 °C to +60 °C
Storage Temperature	–40 °C to +75 °C

Certificates and Compliance

European Conformity (CE)
cULus Listed
UL File No.: NRKH.E189383 & NRKH7.E189383
SICK SIRIC Technology

Frequently Asked Questions

How can I check whether RTP3231 is the correct replacement?

Check the operating voltage, sensing or protective range, output type, connections and required accessories against your existing installation or the relevant manufacturer datasheet.

How quickly can RTP3231 be delivered?

This product is listed as in stock, with estimated UK delivery in 3–5 working days. Delivery depends on order confirmation, courier services and destination.

Where can I check specifications and compatibility?

Review the specification information above and the product’s Downloads or Data Sheets tab, where documents are supplied. Our team can help check part numbers and installation compatibility.

What warranty does Drive Outlet Megastore offer?

Drive Outlet offers its own 2-year return-to-base warranty unless otherwise stated. Manufacturer warranties may not apply; please review the Terms and Conditions before ordering.

Weight	0.175 kg
