SRM50S-HFZ0-S22

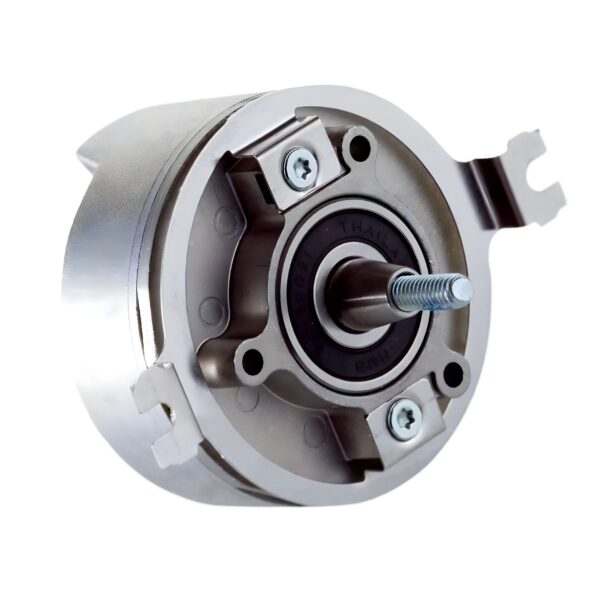

SICK SRM50S-HFZ0-S22 Feedback Encoder (1067031)

£1,149.95 inc VAT

In Stock · Delivered in 3–5 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsSICK
Model SRM50S-HFZ0-S22
Product Type Safe motor feedback system
Series SRS/SRM50-S
Part Number 1067031
Supply Voltage 7–12 V DC (recommended: 8 V DC)
Shaft Type Tapered shaft
Feedback Type Absolute multiturn with sine/cosine incremental signals
Output Frequency (Sine/Cosine) ≤ 200 kHz
Mounting Spring mounting plate
Weight ≤ 0.2 kg
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It InstantlySend us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

SKU: SRM50S-HFZ0-S22 Category: Tags: , Brand:
Guaranteed Safe Checkout
Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

SICK SRM50S-HFZ0-S22 Feedback Encoder (1067031)

The SRM50S-HFZ0-S22 SICK Encoder is a safety-rated motor feedback system offering absolute positioning with HIPERFACE® communication and high-resolution sine/cosine feedback. Designed for integration in servo drive systems with SIL2/PL d functional safety , it is ideal for motion control applications in demanding industrial environments.

Technical Specifications

Model SRM50S-HFZ0-S22
Part Number 1067031
Product Type Safe motor feedback system
Series SRS/SRM50-S
Interface HIPERFACE®
Shaft Type Tapered shaft
Mounting Spring mounting plate
Weight ≤ 0.2 kg
Connector JST 8-pin, radial orientation

Performance Parameters

Feedback Type Absolute multiturn with sine/cosine incremental signals
Sine/Cosine Periods per Revolution 1,024
Multiturn Capability 4,096 revolutions
Total Steps 134,217,728
Measuring Step 0.3″
System Accuracy ± 52″
Integral Non-linearity Typ. ± 45″
Differential Non-linearity ± 7″
Max Operating Speed (Position Reliable) ≤ 6,000 min⁻¹
Max Mechanical Speed ≤ 12,000 min⁻¹
Angular Acceleration ≤ 200,000 rad/s²
Operating Torque 0.2 Ncm
Startup Torque + 0.4 Ncm
Moment of Inertia 10 gcm²
Ball Bearing Life 3.6 × 10⁹ revolutions

Safety Data

SIL Level SIL2 (IEC 61508), SILCL2 (IEC 62061)
Performance Level PL d (EN ISO 13849)
Category Cat. 3 (EN ISO 13849)
PFH (Mean Dangerous Failure Rate) 15 × 10⁻⁹
MTTFD 900 years
Mission Time (TM) 20 years
Usage Continuous analog signal operation
Firmware Version V40
Specialty Compatible with "Strands" safety option (Part No. 2073917 – not included)

Electrical Interface

Supply Voltage 7–12 V DC (recommended: 8 V DC)
Current Consumption 80 mA (without load)
Output Frequency (Sine/Cosine) ≤ 200 kHz
Absolute Position Code Binary, increasing clockwise (viewed from side “A”)
Available Memory Area 1,792 Bytes
Protection Circuit Integrated

Mechanical Data

Flange/Stator Mounting Spring mounting plate
Housing Protection Class IP40 (with mating connector inserted)
Permissible Static Movement Radial: ± 0.2 mm Axial: –0.6 mm / +1.4 mm
Permissible Dynamic Movement Radial: ± 0.05 mm Angular (perpendicular to shaft): Static: ± 0.005 mm/mm Dynamic: ± 0.0025 mm/mm

Ambient Conditions

Operating Temperature –30 °C to +115 °C
Storage Temperature –40 °C to +125 °C (without packaging)
Relative Humidity 90% (non-condensing)
Shock Resistance 100 g, 10 ms (EN 60068-2-27)
Vibration Resistance 20 g, 10 Hz to 2,000 Hz (EN 60068-2-6)
EMC Standards EN 61000-6-2, EN 61000-6-3, IEC 61326-3-1

Scope of Delivery

Included Operating instructions (1 per package)
Not Included Mounting screws for stator coupling or servo clamps Specialty "Strands" safety module (Part No. 2073917)
