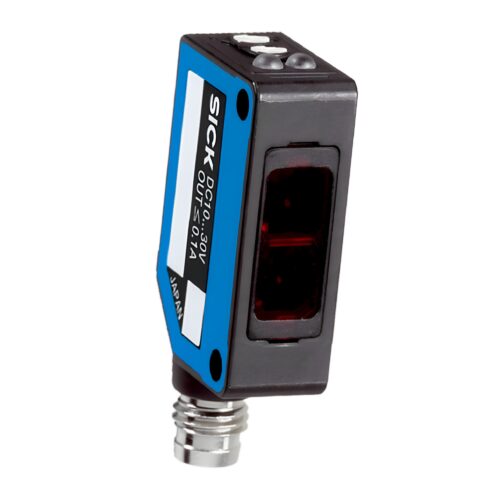

SICK WL150-P420 Photoelectric Retro-Reflective Sensor (6020688)

The SICK WL150-P420 is an ultra-compact photoelectric retro-reflective sensor with a dual-lens system and integrated polarisation filter, engineered for the precise detection of transparent materials such as glass and plastic films. It delivers a sensing range of 0.01 m to 0.6 m, optimized for close-range applications in packaging, bottling, and automation environments.

Its miniature rectangular housing, M8 connector, and selectable light/dark switching make it an ideal solution for OEM designs and machines with limited space. Supplied with a PL20A reflector and BEF-W150-A mounting bracket, it’s ready to install out of the box.

Technical Specifications

Model: WL150-P420 SICK
Part Number: 6020688
Product Type: Photoelectric retro-reflective sensor
Sensing Range: 0.01 m to 0.6 m (max. 0.7 m)
Sensing Principle: Dual-lens system with minimum reflector distance
Type of Light: Visible red light
Focus / Dispersion Angle: Approx. 7.5°
Light Source: LED
Adjustment Method: Potentiometer, 270°
Special Features: Designed for detecting transparent objects
Attenuation Along Beam: > 20%

Mechanical & Electrical Data

Dimensions (W × H × D): 10 mm × 28 mm × 17.5 mm
Housing Design: Rectangular
Output Type: PNP
Switching Mode: Light/dark switching, selectable via control cable
Output Current (Max.): ≤ 100 mA
Response Time: ≤ 0.5 ms
Switching Frequency: 1,000 Hz
Supply Voltage (UB): 10 V DC to 30 V DC
Ripple: ±10%
Current Consumption: 30 mA
Connection Type: M8 male connector, 4-pin
Circuit Protection: A, B, C, D
Protection Class: II
Enclosure Rating: IP67
Housing Material: Plastic, ABS
Optics Material: Plastic, PC
Weight: 7 g

Environmental Data

Operating Temperature: –25 °C to +55 °C
Storage Temperature: –40 °C to +75 °C
UL File Number: NRNT2.E128350 & NRNT8.E128350

Items Supplied

• Reflector: PL20A (Part No. 1012719)
• Mounting Bracket: BEF-W150-A (Part No. 5306217)

Applications

Ideal For:

• Detection of glass bottles, transparent containers, or plastic films
• Close-range packaging and filling machinery
• OEM applications requiring miniature sensor integration
• Conveyor systems with reflective or clear materials

Key Features & Benefits

✅ Optimized for Transparency: Detects clear objects with built-in attenuation threshold.

✅ Miniature Size: Just 10 mm wide – ideal for space-restricted areas.

✅ Fast Switching: 0.5 ms response for high-speed automation.

✅ Polarisation Filter: Eliminates interference from reflective surfaces.

✅ Ready to Install: Includes mounting bracket and reflector.
