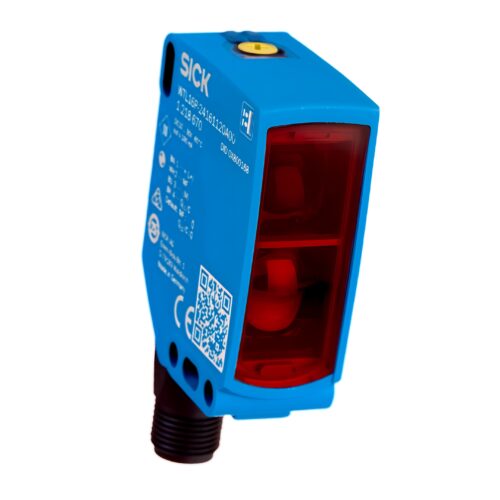

SICK WTB4S-3P2261 Photoelectric Sensor – Background Suppression, PNP Output (1042041)

The SICK WTB4S-3P2261 is a compact, high-precision photoelectric proximity sensor featuring background suppression for reliable detection of objects regardless of color or surface finish. With a sensing range of 10 mm to 180 mm and a PinPoint red LED light source, this sensor is ideal for precise detection in confined spaces. Housed in a slim 12.2 mm ABS body, it offers robust performance, fast response times, and complementary PNP switching output for both light and dark operation.

Certified by ECOLAB, cULUS, and compliant with SICK SIRIC and PinPoint 2.0 technologies, this sensor is built for harsh industrial conditions and fast-paced production environments.

Technical Specifications

Model: WTB4S-3P2261 SICK
Part Number: 1042041
Product Type: Photoelectric proximity sensor
Functional Principle: Background suppression
Sensing Range (Guaranteed): 10 mm to 180 mm
Sensing Range (Max): 4 mm to 180 mm
Light Source: PinPoint LED
Light Type: Visible red light
Wavelength: 650 nm
Light Spot Size: Ø 6.5 mm (at 150 mm)
Adjustment Method: 5-turn potentiometer
Response Time: < 0.5 ms
Switching Frequency: 1,000 Hz

Electronics

Supply Voltage (UB): 10 V DC to 30 V DC
Ripple: < 5 Vpp
Current Consumption: 20 mA
Protection Class: III
Output Type: PNP
Output Function: Complementary (light/dark switching)
Output Current (Max): ≤ 100 mA
Circuit Protection:

• A: Reverse polarity protection
• C: Short-circuit protection
• D: Overvoltage protection

Mechanical Data

Housing Design: Rectangular, slim
Dimensions (W x H x D): 12.2 mm x 41.8 mm x 17.3 mm
Housing Material: ABS plastic
Front Screen Material: PMMA plastic
Connection Type: M8 male connector, 4-pin
Weight: 30 g

Certifications

• CE
• ECOLAB
• cULUS
• SICK SIRIC
• SICK PinPoint 2.0

Applications

Ideal For:

• High-speed object detection in assembly lines
• Presence checking on conveyors and packaging systems
• Confined installation spaces requiring slim sensors
• Applications with varying object colors or backgrounds

Key Features & Benefits

✅ Precise Background Suppression: Reliable detection regardless of object color or surface.

✅ Fast Switching: 1,000 Hz frequency with < 0.5 ms response time.

✅ Compact Format: Slim rectangular design for tight spaces.

✅ Durable Construction: ECOLAB-certified and rugged ABS housing.

✅ Easy Adjustment: Fine-tuned detection via 5-turn potentiometer.
