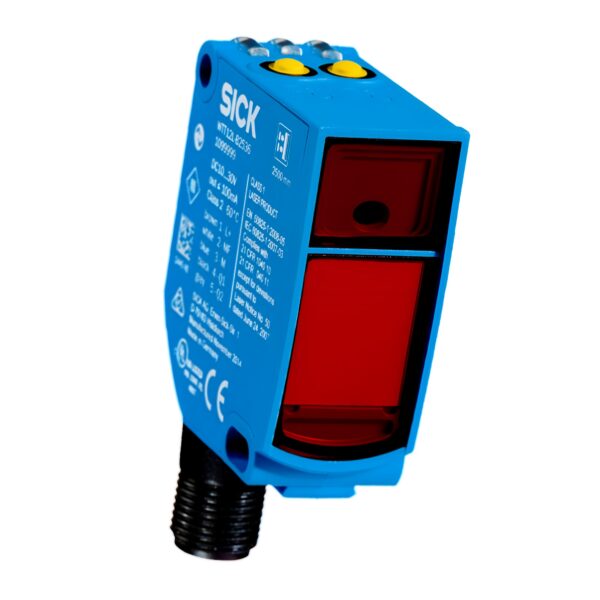

SICK WTT12L-A2523 PowerProx Laser Distance Sensor (1082477)

WTT12L-A2523 – The SICK WTT12L-A2523 is a compact photoelectric laser distance sensor using background suppression and optical time-of-flight (ToF) for accurate mid-range detection. With a 100 mm to 1,400 mm sensing range, it provides consistent measurement in demanding industrial automation tasks.

Its visible Class 1 red laser, 12-bit analog resolution, and push-pull digital output (PNP/NPN selectable) make it an ideal option for precision tasks, particularly where repeatability and robustness are critical.

Technical Specifications

• Model: WTT12L-A2523
• Part Number: 1082477
• Series: WTT12L PowerProx
• Sensor Type: Photoelectric proximity sensor
• Mounting Style: Rectangular body with axial M12 connector
• Light Source: Class 1 red laser, 658 nm

Performance Parameters

• Functional Principle: Optical time-of-flight
• Detection Method: Background suppression
• Sensing Range (min–max): 100 mm – 1,400 mm
• Max Sensing Capability: 50 mm – 1,400 mm
• Resolution: 1 mm
• Repeatability: 1.1 mm – 1.5 mm
• Accuracy (typical): ±15 mm to ±20 mm
• Laser Spot Size at 1.4 m: Ø 10 mm
• Laser Classification: Class 1 (IEC 60825-1, CDRH compliant)

Electronics

• Supply Voltage: 12–30 V DC
• Current Consumption: 70 mA
• Switching Output: Push-pull (PNP/NPN selectable)
• Number of Outputs: 1 digital (Q1)
• Switching Mode: Light switching
• Output Current: ≤ 50 mA
• Response Time: ≤ 16.7 ms
• Switching Frequency: 30 Hz
• Analog Output (Switchable):
  • 4–20 mA (≤ 450 Ω)
  • 0–10 V (≥ 50 kΩ)
  • Resolution: 12-bit
• Output Time: ≤ 16.7 ms
• Input Option: Sender off
• Enclosure Rating: IP67
• Protection Class: III
• Warm-Up Time: < 15 min
• Initialization Time: < 300 ms

Mechanical Data

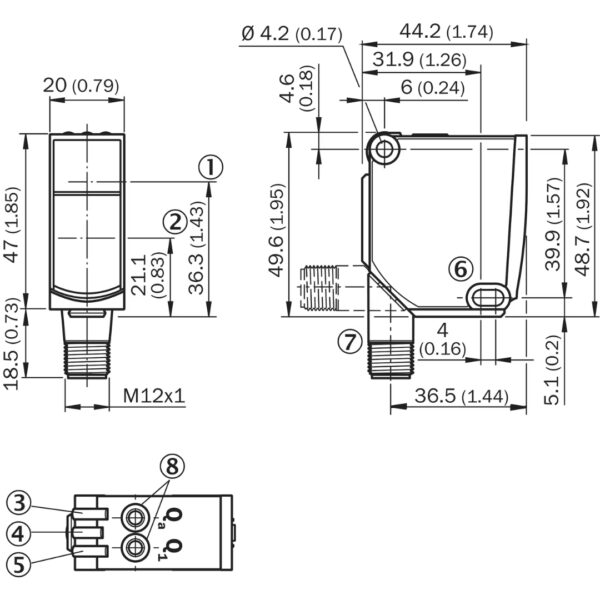

• Dimensions (W x H x D): 20 mm x 49.6 mm x 44.2 mm
• Housing Material: Plastic, VISTAL® reinforced polymer
• Optics Cover: PMMA plastic
• Weight: 48 g
• Connection Type: M12 plug, 5-pin

Function & Application

Purpose:
The WTT12L-A2523 SICK excels in stable, short-to-mid-range detection using laser ToF principles, delivering fast and repeatable measurements for precise control tasks. Suitable for automation setups requiring analog output and medium response time.

Typical Applications:

• Level monitoring in containers
• Position detection on linear tracks
• Presence detection on logistics conveyors
• Packaging lines with reflective targets

Compliance & Classification

• Conformity: CE, cULus, RCM
• Safety Certifications: Class 1 laser (IEC/EN/CDRH compliant)
• MTTFD: 124 years
• Mission Time (TM): 20 years
• Product Classification: A – Returnable stock item

Key Features & Benefits:

✅ Optimized for Mid-Range Sensing: Covers up to 1.4 meters with precise, stable results.

✅ Exceptional Repeatability: Repeatable measurements down to 1.1 mm – ensures high reliability in automation tasks.

✅ Dual Output Capability: Includes both analog (voltage/current) and digital (push-pull) outputs for versatile integration.

✅ Plug & Play Setup: Teach-in buttons and IP67 rating make commissioning and field use fast and robust.
