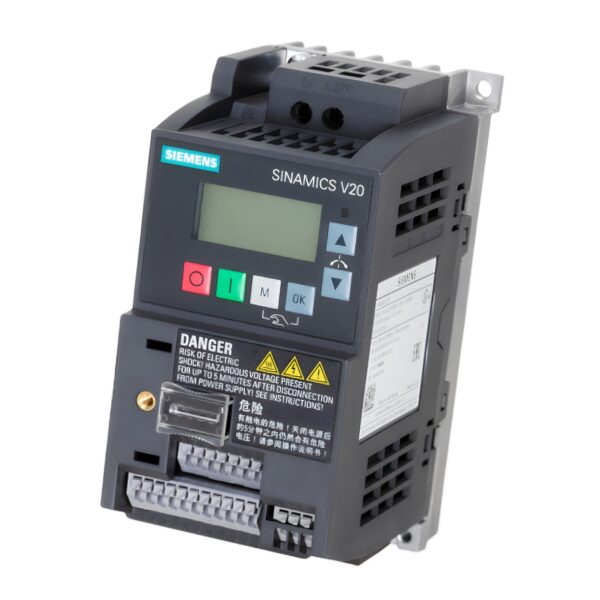

Siemens 6SL3210-5BB17-5UV1 Inverter Drive – 0.75kW, IP20

The Siemens 6SL3-210-5BB17-5UV1 is a high-efficiency SINAMICS V20 inverter rated for 0.75 kW with 150% overload capacity for demanding applications.
With built-in MODBUS RTU, integrated BOP, and simple parameterization, it offers a complete solution for cost-sensitive yet reliable motor control in compact machines and utilities.

Technical Specifications

Model: 6SL3210-5BB17-5UV1 Siemens
Series: SINAMICS V20
Rated Power: 0.75 kW
Input Voltage: 200–240 V AC 1-phase (-10% / +10%)
Frequency Range: 47–63 Hz
Output Overload Capability: 150% for 60 seconds
Protection Rating: IP20 / UL Open Type
Frame Size: QB
Dimensions (WxHxD): 68 × 142 × 128 mm
Net Weight: 0.800 kg

Function & Application

• Purpose: Compact and cost-effective drive for basic motor control applications
• Typical Use Cases: HVAC, small machinery, pumps, fans, compressors
• I/O Configuration:
  • 4 x Digital Inputs (DI)
  • 2 x Digital Outputs (DO)
  • 2 x Analog Inputs (AI)
  • 1 x Analog Output (AQ)
• Fieldbus Communication: USS / MODBUS RTU
• Integrated Components:
  • Built-in Basic Operator Panel (BOP)
  • Internal braking functions for controlled deceleration

Performance & Features

• Quick Setup: Simple commissioning with onboard BOP display
• Enhanced Load Handling: 150% overload for heavy-duty cycles
• Energy Efficiency: Built-in ECO mode for optimized power usage
• Cooling: Passive cooling via internal heatsink
• Installation: DIN rail or wall mountable design

Recommended Accessories & Services

• [3RV2011-1KA10 – Motor Protection Circuit Breaker (9–12 A)]
• [6SL3203-0BB21-8VA0 – EMC Filter, 200–240 V 1AC, 18 A]
• [3NA3805 – LV HRC Fuse, 16 A, NH000, 500 V AC]
• [6FC8505-3EX01-0AA0 – 3-Year SINAMICS Service Protection Plan]

Delivery & Compliance

• Estimated Dispatch Time: 5 Working Days
• Packaging Dimensions: 140 × 225 × 180 mm
• Packaging Quantity: 1 Piece
• Country of Origin: China

Compliance & Classification

• RoHS Compliance: Since 05.07.2010
• WEEE Take-Back Obligation: Yes
• SCIP Number: 6331733c-70bf-49a0-b678-6257ce659ee1
• Commodity Code: 85044095
• Catalog ID: SINAMICS V20
• Product Group: 5680
• Group Code: R220
• Product Class: C – Made to order, non-returnable
• EAN: 4042948669860
• UPC: 804766253300

Key Features & Benefits:

✅ 0.75 kW Output Power – Perfect for general-purpose drives.

✅ 150% Overload for 60s – Handles momentary high loads.

✅ USS/MODBUS RTU Communication – Seamless fieldbus integration.

✅ Built-in BOP Interface – No external setup tools required.

✅ Compact Size QB – Fits into tight control panel layouts.

📦 Order Today for Fast UK & Europe Delivery!

At Drive Outlet Megastore, we offer the best Siemens 6SL3210-5BB17-5UV1 prices, with fast shipping across the UK and Europe.

Need assistance with motor drive sizing, filter selection, or parameter setup? Reach out to Drive Outlet Megastore.

Our drive specialists are here to help!
