Panasonic LX-101-P-Z Digital Mark Sensor

£235.69 inc VAT

In Stock · Delivered in 3–5 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsPanasonic
Model LX-101-P-Z Panasonic
Series LX-100
Sensing Range 10 ± 3 mm
Supply Voltage 12 to 24 V DC ±10% (Ripple P-P ≤10%)
Enclosure PBT
Sensor Type Digital Mark Sensor
Output Type PNP open-collector
Connector Type Plug-in (mating cable sold separately)
Applied Voltage ≤30 V DC
Residual Voltage ≤1.5 V (at 100 mA)
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It InstantlySend us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

SKU: LX-101-P-Z Category: Tag: Brand:
Guaranteed Safe Checkout
Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

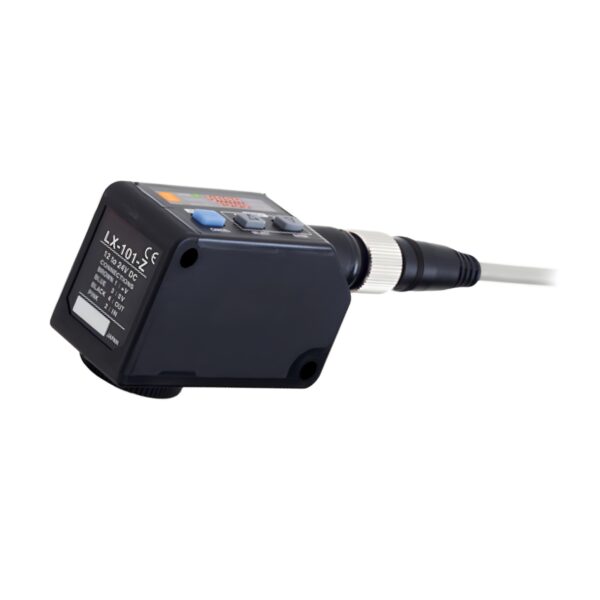

Panasonic LX-101-P-Z Digital Mark Sensor

The Panasonic LX-101-P-Z is a high-speed digital mark sensor from the LX-100 Series, optimized for detecting registration marks and color differences in printing, packaging, and labeling applications. Featuring a 1 × 5 mm spot size and 10 ±3 mm sensing range, the LX-101-P-Z supports advanced auto-teach functionality and high-speed response down to 45 µs in mark mode.

Technical Specifications

Model LX-101-P-Z Panasonic
Series LX-100
Sensor Type Digital Mark Sensor
Sensing Range 10 ± 3 mm
Spot Size 1 × 5 mm (at 10 mm distance)
Supply Voltage 12 to 24 V DC ±10% (Ripple P-P ≤10%)
Current Consumption – Normal mode: ≤30 mA – ECO mode: ≤25 mA

Detection & Output

Output Type PNP open-collector
Max Source Current 100 mA
Applied Voltage ≤30 V DC
Residual Voltage ≤1.5 V (at 100 mA)
Output Modes – Mark Mode: Light-ON / Dark-ON (Auto-set via teaching) – Color Mode: Consistent-ON / Inconsistent-ON
Short-Circuit Protection Built-in
Response Time – Mark Mode: ≤45 µs – Color Mode: ≤150 µs

Configuration & Teaching

Teaching Input PNP non-contact – High: +4 V to +V (≤3 mA sink) – Low: 0 to +0.6 V or open
Input Impedance 10 kΩ
Sensitivity Modes – Mark: 2-level or full-auto teaching – Color: 1-level teaching
Fine Sensitivity Adjustment Included
Timer Function ON/OFF delay, 1–500 ms (9 levels)
Display 4-digit red LED

Environmental & Protection

Protection Rating IP67 (IEC)
Operating Temperature -10 to +55 °C
Storage Temperature -20 to +70 °C
Ambient Humidity 35–85% RH
Ambient Light Immunity ≤3000 lx (incandescent)
Voltage Withstand 1,000 V AC (1 min)
Vibration Resistance 10–500 Hz, 3 mm or 196 m/s² in XYZ (2 hrs)
Shock Resistance 500 m/s² (50 G), 3× XYZ

Optics & Materials

Emitting Element Combined Red (640 nm) / Green (525 nm) / Blue (470 nm) LEDs
Enclosure PBT
Lens Glass
Lens Holder Aluminum
Display Cover Polycarbonate
Buttons Silicone rubber
Connector Type Plug-in (mating cable sold separately)
Cable Extension Up to 100 m (≥0.3 mm² cable)

Mechanical & Accessories

Net Weight Approx. 55 g
Gross Weight Approx. 120 g
Included Accessories M4 × 30 mm screws with washers (2 pcs)
