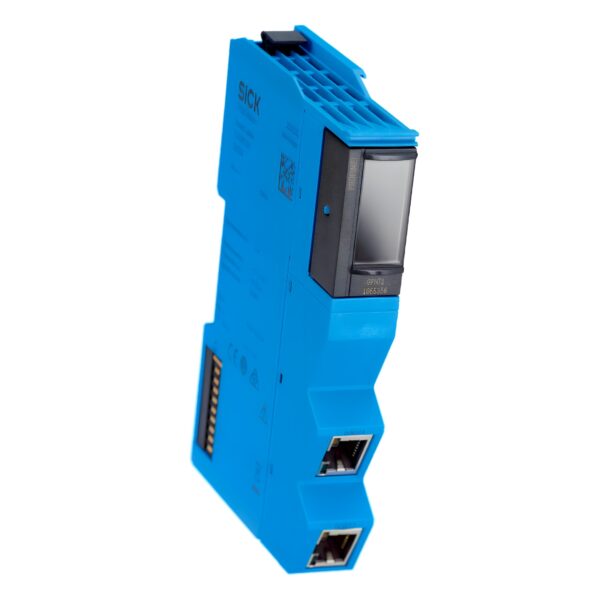

SICK FLX0-GPNT100 Flexi Compact PROFINET Gateway (1085356)

The SICK FLX0-GPNT100 is a compact, high-speed gateway module for the Flexi Compact safety controller system, enabling seamless PROFINET fieldbus communication for diagnostic data exchange and control. Designed to integrate safety control systems into industrial networks, this gateway supports TCP/IP sockets and is fully configurable via SICK Safety Designer software. Its slim design and backplane-powered interface make it ideal for scalable and space-sensitive automation environments.

Note: Operating instructions are available for download. Supplied as gateway module only.

Technical Specifications

Model: FLX0-GPNT100 SICK
Part Number: 1085356
Product Type: PROFINET gateway module
Module Role: Communication gateway for Flexi Compact
Fieldbus Support: PROFINET
TCP/IP Sockets: Supported
Configuration Software: SICK Safety Designer
Items Supplied:

• FLX0-GPNT100 gateway module
• Downloadable operating instructions

Electrical Data

Power Supply Method: Via Flexi Compact backplane bus
Current Consumption: 135 mA (at nominal voltage)
Power Loss: ≤ 3.3 W
Protection Class: III (EN 61140)
Interference Resistance: EN 61000-6-2
Emission Standard: EN 61000-6-4

Mechanical Data

Housing Design: Open device (IEC 61010-2-201)
Mounting Type: DIN rail (35 mm × 7.5 mm per IEC 60715)

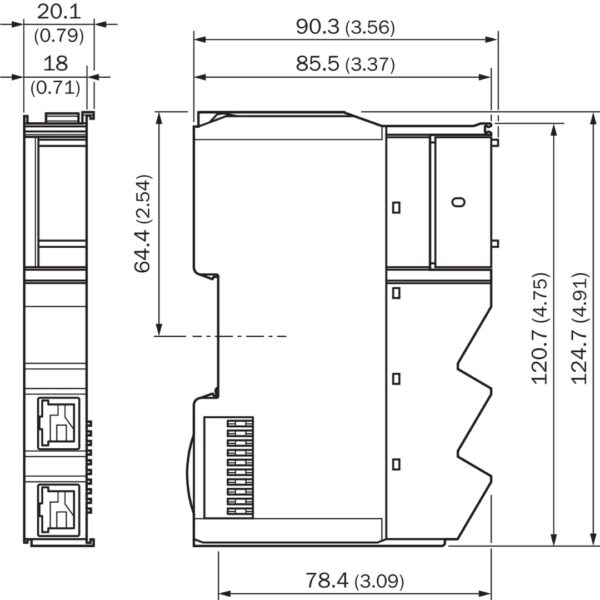

Dimensions (W x H x D): 18 mm x 124.7 mm x 85.5 mm
Weight: 108 g (±5%)
Contamination Rating: 2 (IEC 61010-1)

Applications

Ideal For:

• Integrating Flexi Compact safety systems into PROFINET networks
• Real-time safety diagnostics and status reporting
• Industrial control systems requiring fieldbus communication
• Machine builders needing flexible, modular safety expansion

Key Features & Benefits

✅ PROFINET-Ready: Enables real-time safety communication with networked controllers.

✅ Compact Profile: Slim 18 mm width conserves cabinet space.

✅ Plug & Play Expansion: Seamlessly connects via Flexi Compact backplane.

✅ Certified Industrial EMC Compliance: Ensures reliable fieldbus performance.

✅ Easy Setup: Fully configurable via SICK Safety Designer software.
