SICK TBS-1NSGT3506NM Temperature Sensor (6064877)

The SICK TBS-1NSGT3506NM is a rugged, high-precision industrial temperature sensor featuring IO-Link connectivity and analog output. With a rotatable display, durable stainless steel construction, and fast programmable switching, it ensures accurate and reliable temperature monitoring across a wide range of industrial process applications.

Technical Specifications

Model: TBS-1NSGT3506NM

Part No.: SICK 6064877

Product Type: Industrial Temperature Sensor

Temperature Measuring Range: –20 °C to +80 °C

Sensor Element: Pt1000, 2-wire, Class A (according to IEC 60751)

Output Signals:

• IO-Link communication + PNP switching output
• 4 mA … 20 mA analog output

Switching Output Type: Transistor (2 outputs)

Switching Voltage: Supply voltage – 1 V DC

Maximum Switching Current: ≤ 250 mA

Switching Delay: 0 s to 50 s, programmable

Setting Accuracy of Switching Outputs: ±0.1 °C

Scaling of Measuring Range:

• Zero Point: Max. +25% of span
• Full Scale: Max. –25% of span

Electrical Interface

Supply Voltage: 15 V DC to 35 V DC

Maximum Current Consumption:

• 45 mA (sensor electronics only)
• Up to 570 mA total (including switching load)

Electrical Connection:

• M12 round connector, 4-pin

Enclosure Rating: IP65 / IP67

Protection Class: III (Protective Extra-Low Voltage)

Isolation Voltage: 500 V DC

Overvoltage Protection: Up to 40 V DC

Short-Circuit Protection: Yes (QA, Q1, Q2 towards M)

Reverse Polarity Protection: Yes (L+ towards M)

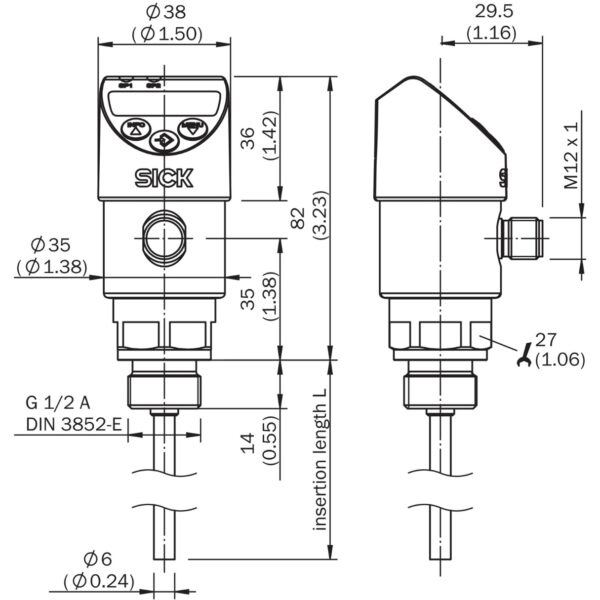

Mechanical Data

Process Connection: G ½ A Thread (DIN 3852-E standard)

Insertion Length / Probe Diameter: 350 mm / 6 mm

Seal Material: NBR (Nitrile Rubber)

Wetted Parts Material: Stainless steel 1.4571 (AISI 316Ti)

Housing Materials:

• Lower Body: Stainless steel 1.4301 (AISI 304)
• Plastic Head: PC + ABS
• Input Keypad: TPE-E
• Display Window: Polycarbonate (PC)

Display:

• 14-segment blue LED display, 4 digits
• Digit Height: 9 mm
• Update Rate: 200 ms
• Electronic rotation by 180°

Rotatable Housing:

• Display against electrical connection: 330°
• Housing against process connection: 320°

Maximum Process Pressure: ≤ 150 bar

Safety-Related Data

Mean Time To Failure (MTTF): 283 years

EMC Compliance:

• 2004/108/EC
• EN 61326-1 (Emission group 1, Class B, Industrial Immunity)

Ambient Conditions

Operating Temperature (Electronics): –25 °C to +85 °C

Process Temperature (Sensor Tip): –20 °C to +80 °C

Storage Temperature: –40 °C to +85 °C

Relative Humidity: 90% non-condensing

Certificates and Compliance

• European Conformity (CE)
• UKCA Certification
• IO-Link Certified
• cULus Listed
• RoHS Compliance

Applications

Ideal For:

• Industrial process temperature monitoring
• Machine temperature control and diagnostics
• Food and beverage production temperature supervision
• Hydraulic and pneumatic system monitoring
• Condition monitoring in automation systems

Key Features & Benefits

✅ Dual Output Functionality: IO-Link communication, analog signal (4–20 mA), and two programmable transistor switching outputs.

✅ High Measurement Accuracy: Class A Pt1000 element with ±0.1 °C switching precision.

✅ Flexible Installation: Fully rotatable housing and display for optimal orientation.

✅ Durable Industrial Build: Stainless steel wetted parts with IP65/IP67 protection.

✅ Quick Integration: M12 connection and IO-Link compatibility for smart diagnostics and easy commissioning.
