SICK UM18-212161101 Ultrasonic Sensor (6048416)

£183.94 inc VAT

In Stock · Delivered in 5–7 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsSICK
Model UM18-212161101
Series UM18 Ultrasonic Sensors
Part Number 6048416
Sensing Axis Straight
Supply Voltage 10–30 V DC
Operating Range 65 mm to 350 mm
Limiting Range 600 mm
Resolution ≥ 0.2 mm
Sensor Type Ultrasonic proximity sensor
Target Type Natural objects
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It InstantlySend us the competing price or quote for a personalised offer.

24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

SICK UM18-212161101 Ultrasonic Sensor (6048416)

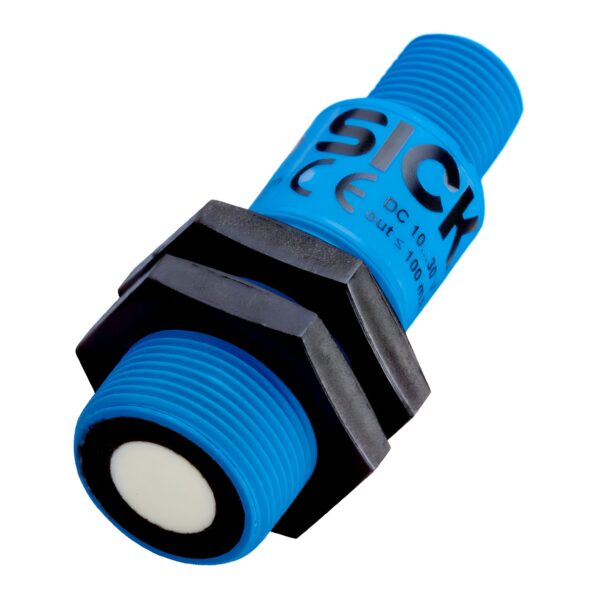

UM18212161101 – The SICK UM18-212161101 is a compact and versatile ultrasonic distance sensor designed for reliable object detection in dusty, wet, or reflective environments . With an operating range of 65 mm to 350 mm (limiting range 600 mm), this M18 cylindrical sensor features multiple output modes , including Distance to Object (DtO) , Window (Wnd) , and Object between Sensor and Background (ObSB) .

Technical Specifications

Model UM18-212161101
Part Number 6048416
Series UM18 Ultrasonic Sensors
Sensor Type Ultrasonic proximity sensor
Operating Range 65 mm to 350 mm
Limiting Range 600 mm
Target Type Natural objects
Resolution ≥ 0.2 mm
Repeatability ± 0.15%
Measurement Accuracy ± 1%
Response Time 64 ms
Switching Frequency 12 Hz
Output Time 16 ms
Ultrasonic Frequency 400 kHz
Teach-In Yes (for switching mode and output inversion)
Factory Reset Function Yes
Supply Voltage 10–30 V DC
Power Consumption ≤ 1.2 W
Initialization Time < 300 ms
Indicators 2 × LED
Enclosure Rating IP65 / IP67
Protection Class III
MTTFD 101 years
DCavg 0%
Housing Design Cylindrical, M18 x 1 thread
Sensing Axis Straight
Dimensions (W × H × D) 18 × 18 × 52.7 mm
Housing Material PBT plastic
Ultrasonic Transducer Polyurethane foam, glass epoxy resin
Weight 15 g
Connection Type M12, 4-pin male connector
Country of Origin Germany
Lifecycle Status Active product
Operating Modes Distance to Object (DtO) Window (Wnd) Object between Sensor and Background (ObSB)

Function & Application

Purpose The UM18-212161101 SICK is engineered for non-contact distance sensing in space-constrained environments where optical sensors may fail due to dust, humidity, or transparency. With configurable output logic and high reliability , it excels in packaging lines , robotic zones , and automated inspection tasks .
Level detection in tanks or hoppers
Presence verification on conveyor belts
Distance control in robotic arms
Object detection in packaging automation
Bypass or reflective surface sensing

Compliance & Classification

CE Conformity Yes
cULus Listed Yes
RoHS Compliance Yes
WEEE Take-Back Obligation Yes
SCIP Number Not applicable
Commodity Code 90318080
Product Class A – Returnable stock item
