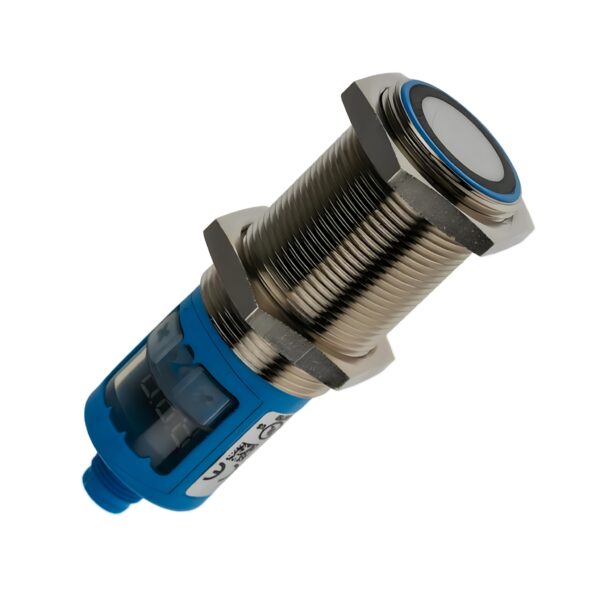

SICK UM30-213111 Ultrasonic Distance Sensor (6037537)

The SICK UM30-213111 is a high-performance ultrasonic distance sensor designed for non-contact measurement of natural objects in challenging industrial environments. With a maximum operating range of 1,300 mm and a 2,000 mm limiting range, it delivers excellent accuracy and repeatability, even in dusty, reflective, or irregular target conditions.

Its rugged M30 cylindrical housing, configurable operating modes, and advanced filter options make it ideal for detection, positioning, or object counting tasks across logistics, packaging, and automation systems.

Technical Specifications

Model: UM30-213111 SICK
Part Number: 6037537
Product Type: Ultrasonic distance sensor
Operating Range: 200 mm to 1,300 mm
Limiting Range: Up to 2,000 mm
Target Type: Natural objects
Resolution: ≥ 0.18 mm
Repeatability: ± 0.15%
Measurement Accuracy: ± 1%
Ultrasonic Frequency: 200 kHz
Temperature Compensation: Yes
Response Time: 92 ms
Switching Frequency: 8 Hz
Output Time: 23 ms

Functional Features

• Operating Modes: Switching point (DtO), Switching window, Background suppression (ObSB)
• Adjustable Functions:
  • Teach-in
  • Output level and logic
  • On-delay settings
  • Synchronisation (up to 50 sensors)
  • Measurement filters (value smoothing, suppression, detection area shaping)
• Display: Integrated LED display (can be disabled)
• Multiplexing: Up to 50 sensors without cross-talk
• Factory Reset: Yes

Electrical Data

Supply Voltage (UB): 9 V DC to 30 V DC
Power Consumption: ≤ 2.4 W
Initialization Time: < 300 ms
Indicators: LED display + 2 LEDs
Enclosure Rating: IP65 / IP67
Protection Class: III

Mechanical Data

Dimensions (W × H × D): 30 mm × 30 mm × 84 mm
Design: Cylindrical
Sending Axis: Straight
Thread Size: M30 × 1.5
Housing Material:

• Body: Nickel-plated brass, PBT
• Ultrasonic Transducer: Polyurethane foam & glass epoxy resin
  Connection Type: M12 male connector, 5-pin
  Weight: 150 g

Safety Parameters

MTTFD (Mean Time To Dangerous Failure): 101 years
DCavg: 0%

Applications

Ideal For:

• Non-contact object detection on conveyors
• Level measurement in tanks and hoppers
• Presence sensing in packaging and material handling
• Environments with dust, dirt, or transparent surfaces

Key Features & Benefits

✅ Reliable Detection: Works with various materials, regardless of shape, color, or reflectivity.

✅ Flexible Configuration: Teach-in and customizable output logic.

✅ Synchronized Sensing: Use up to 50 units with no signal interference.

✅ Compact Design: M30 threaded housing fits standard mountings.

✅ Dual IP Rating: IP65/IP67 for tough industrial use.
